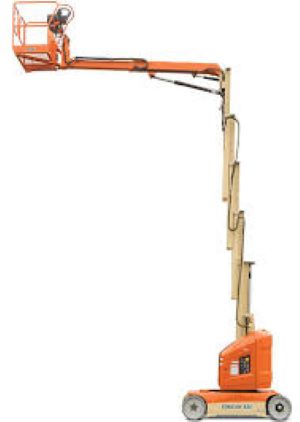

JLG Toucan 26E Mast Boom Lift aerial lift

JLG Toucan 26E Mast Boom Lift aerial lift

$8,750.00 CAD
$9,995.00 CAD $8,750.00 CAD
Sale Sold out
Shipping calculated at checkout.

Key Specs

  • Platform Height: 26 ft 5 in. / 8.05 m
  • Platform Capacity: 500 lb / 226.80 kg
  • Machine Width: 3 ft 3 in. / 0.99 m

Key Features

  • Vertical telescopic mast with a jib lets you reach up and over obstacles in tighter spaces than an articulating boom
  • Non-marking tires and efficient electric power for indoor jobs
  • 25% gradeability for outside work



OVERVIEW

Power Source

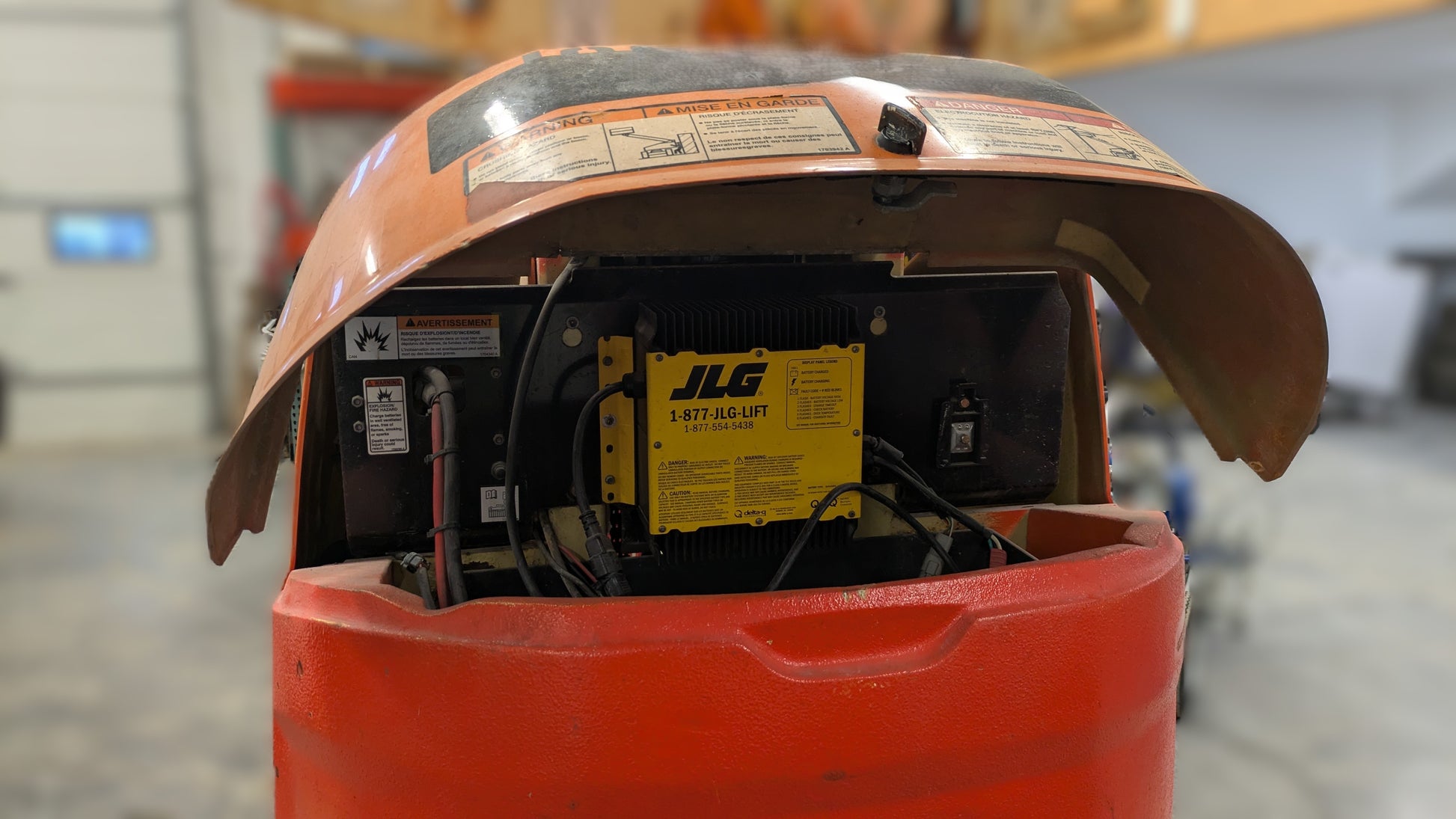

Batteries 260 amp-hr
Electrical System 24 Volts DC


Performance
Drive Speed - Platform Lowered 3.4 mph / 5.47 km/h
Gradeability - 2WD 25 %
Platform Capacity 500 lb / 226.80 kg
Platform Capacity - Unrestricted 500 lb / 226.80 kg
Swing Type Non-Continuous
Turning Radius - Outside 6 ft 5 in. / 1.96 m
Turning Radius - Inside 1 ft 8 in. / 0.51 m
Jib - Range of Articulation 127 Degrees


Dimensional Data
Ground Clearance 4 in. / 0.1 m
Machine Height 6 ft 5 in. / 1.96 m
Machine Length 9 ft 3 in. / 2.82 m
Machine Width 3 ft 3 in. / 0.99 m

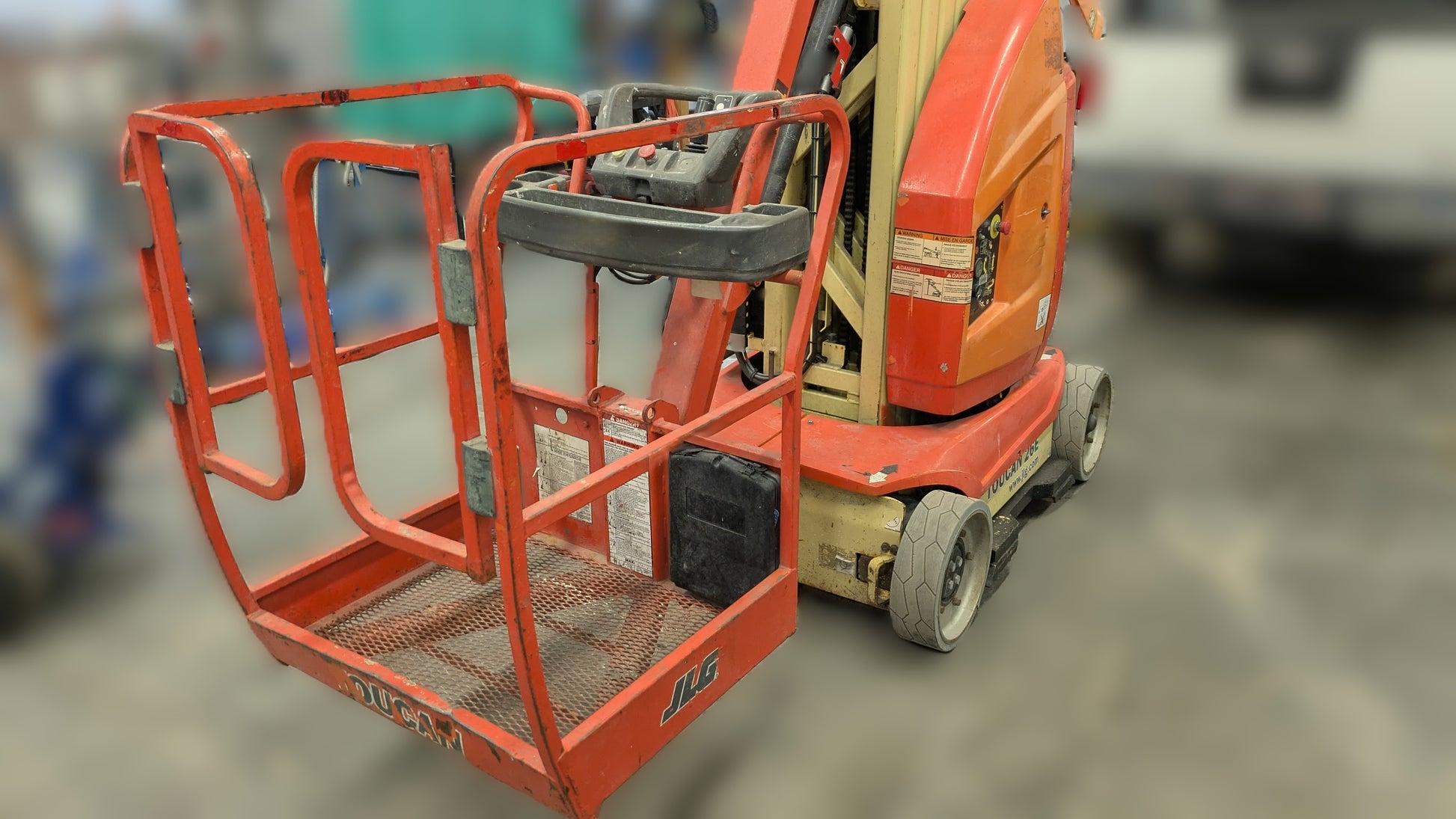

Platform Dimension A 2 ft 5 in. / 0.74 m
Platform Dimension B 3 ft / 0.91 m
Tailswing 5 in. / 0.12 m

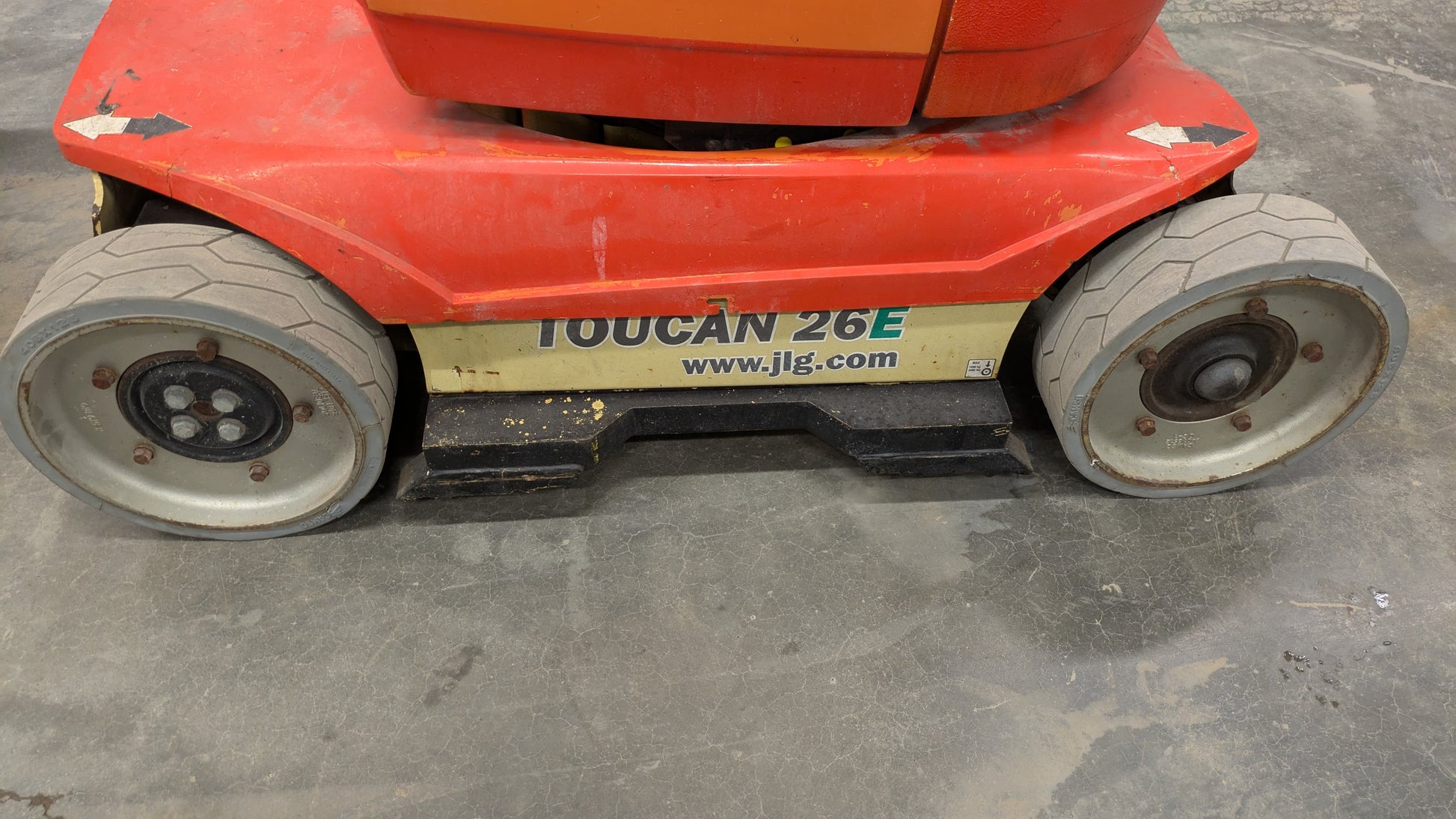

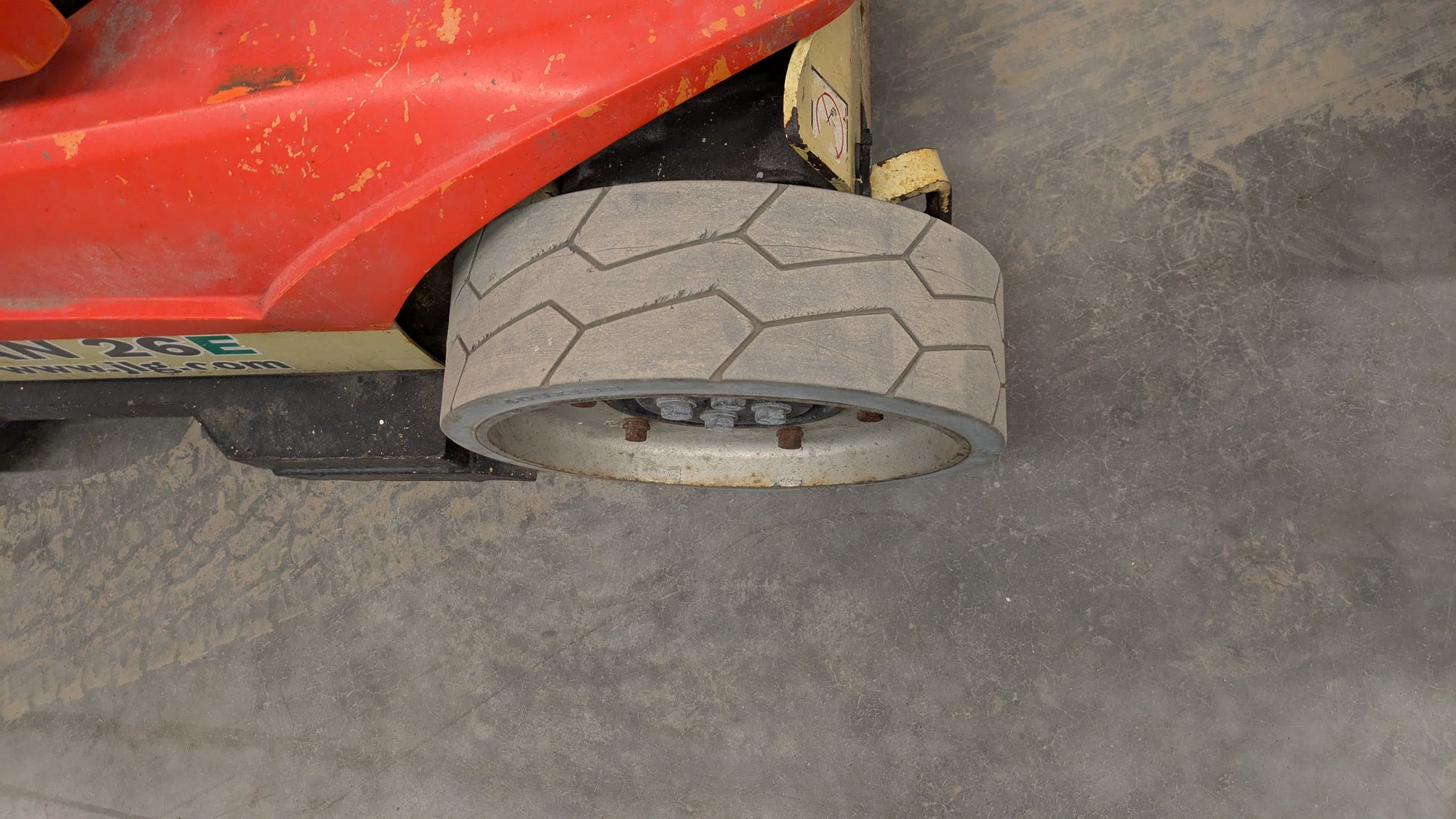

Tire Size 125 x 406 non-marking
Wheelbase 3 ft 9 in. / 1.14 m

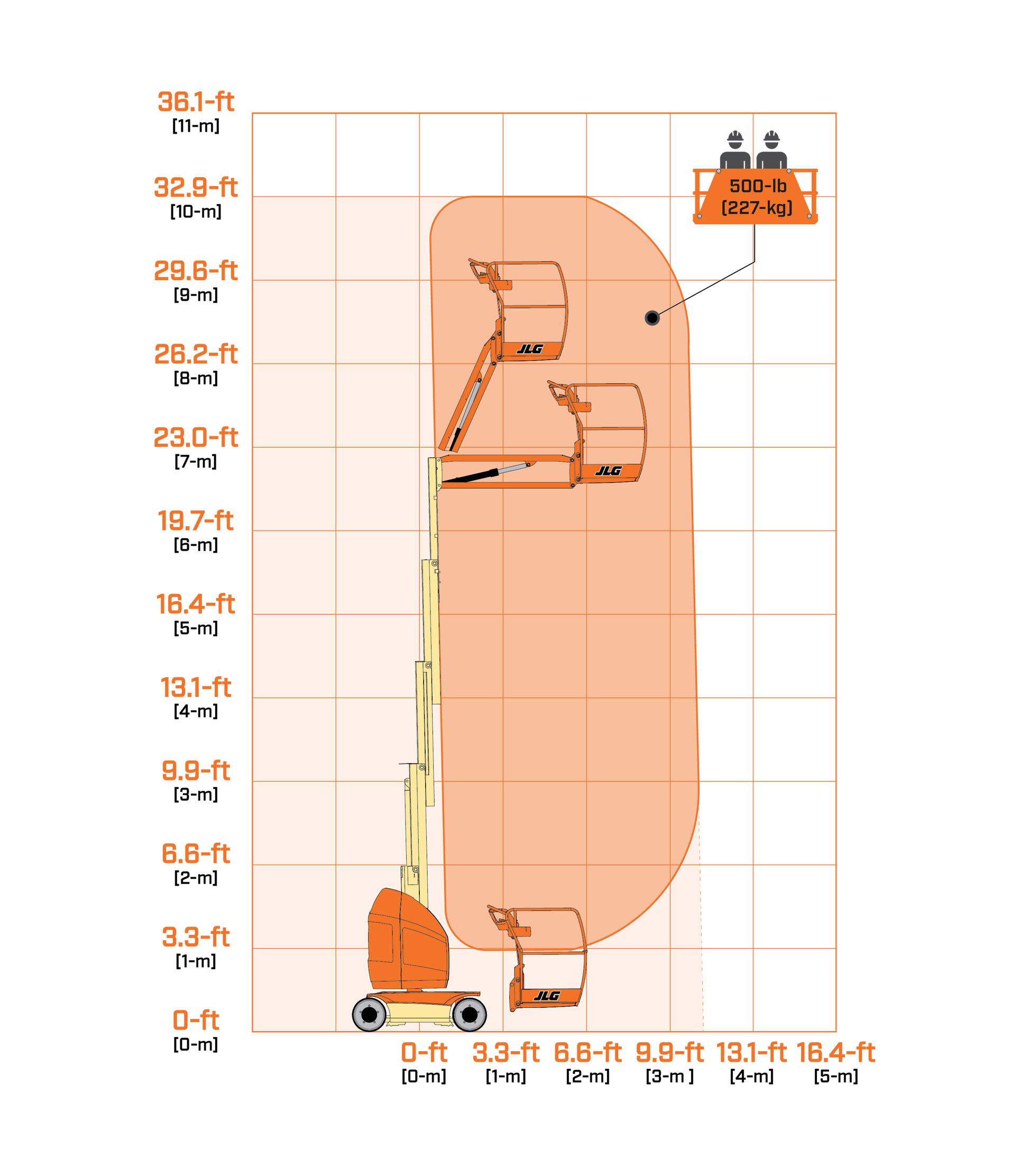

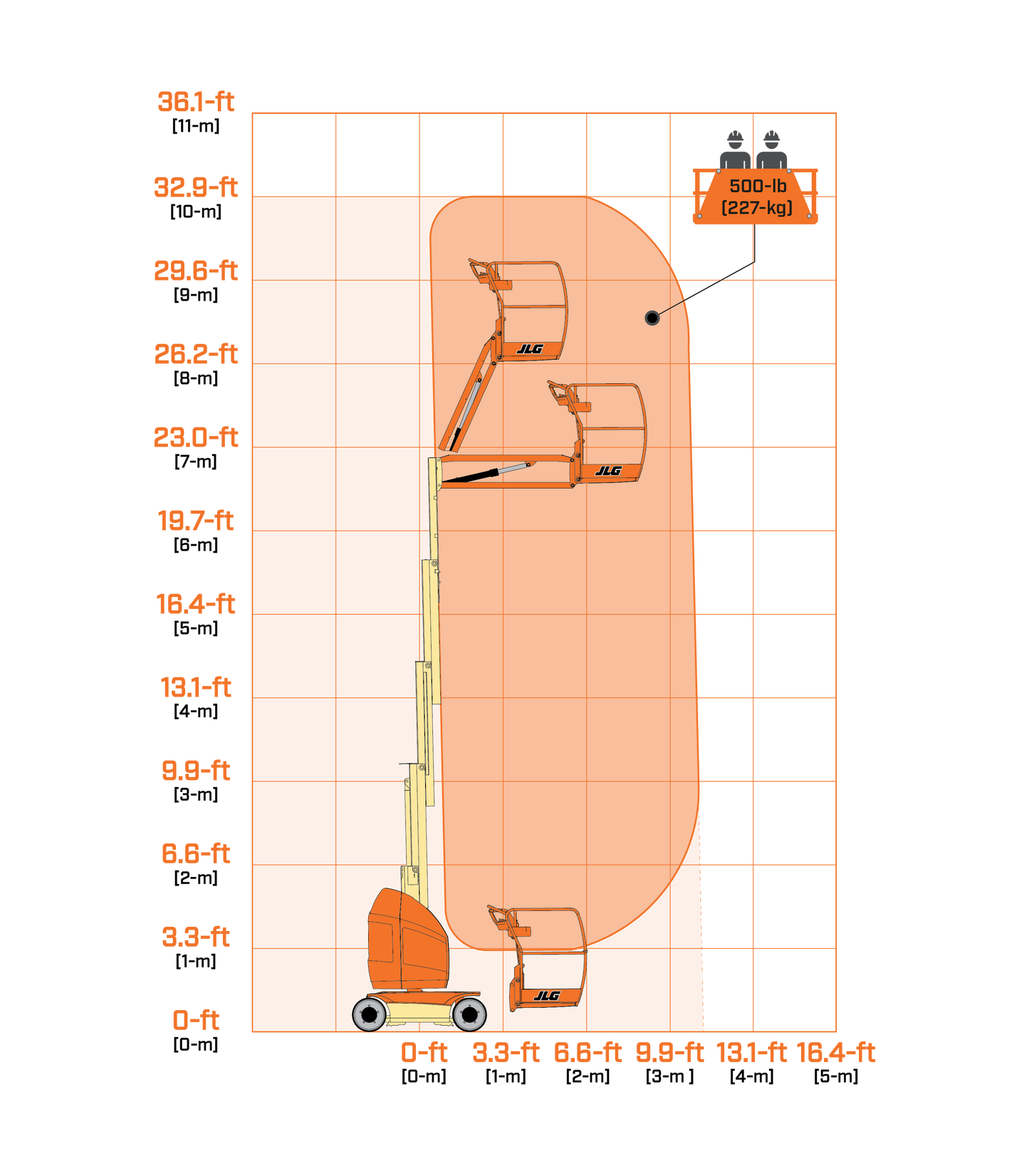

Reach Specifications
Horizontal Jib Rotation 0 Degrees
Horizontal Outreach 8 ft 8 in. / 2.64 m
Platform Height 26 ft 5 in. / 8.05 m
Up and Over Height 21 ft 5 in. / 6.53 m


General
Capacity - Hydraulic Reservoir 1.9 gal. / 7 L
Machine Weight 6900 lb / 3129.79 kg
Maximum Ground Bearing Pressure 319 psi / 22.34 Kg/cm2
